ECOCART™ Filter Cartridge Housings

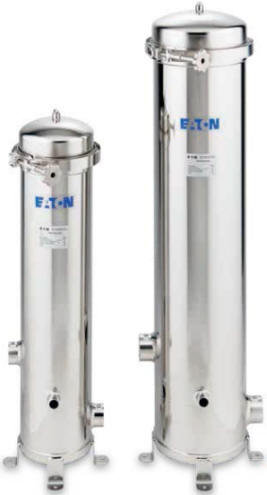

1, 3, 4, 5 and 7 cartridge designs for flow rates up to 280 GPM

MAWP is 300 PSIG @ 200F

Call 908.362.9981 and speak with a filtration expert

Specification Sheet:

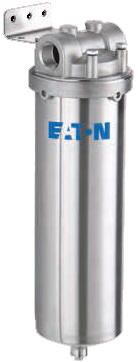

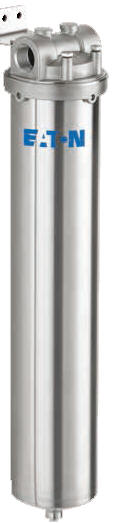

The Eaton ECOCART™ single cartridge housing is engineered for demanding industrial applications requiring high-flow filtration performance. Its hydro formed light weight body is designed for use with industry standard filter cartridge designs:



• Designs available for 10", 20", 30" and 40" long cartridges

• Accommodates filter cartridges up to 2.75" diameter

• DOE (double open end) filter cartridge ends



ECOCART filter housings are engineered to provide reliable sealing with a long service life in a compact design for filtration applications up to 500 microns.  The two-piece design consists of the filter head installed into the pipeline and the filter body, attached to the head via clap or union nut.  ECOCART filter housings are available in both 304 and 316 stainless steel with bead blasted finish inside and out.



• Pre-filtration and batch filtration

• Water and wastewater treatment

• Solvents, paints, fats, and oils



Key Features

• Accepts industry standard filter cartridges including Eaton:

  • LOFTREX (1.0 - 75 microns @ 80% efficiency)

  • LOFTREX-N (1.0 - 100 microns @ 90% efficiency)

  • LOFPLEAT-AG (0.20 - 25.0 microns @ 90% efficiency)

  • LOFTREX-M (1.0 - 150 microns @ 95% efficiency)

  • LOFMEM-W (0.05 - 0.65 microns @ 99.98% efficiency)

  • LOFMEM-T (0.05 - 1.0 microns @ 99.98% efficiency)

  • LOFPLEAT-EE (0.2 - 50 microns @ 99.98% efficiency)

• 304 and316 SS construction

• Glass bead blasted housing finish

• Housing head with secure eye bolt closure

• O-ring cover seal in EPDM (standard), with FKM option

• Maximum operating pressure: 300 PSIG

• Maximum operating temperature: 200°F (120°C)

• Specifications (PDF)
